Downdraft hob system

INQUIRY
Description
Downdraft Hob System — Integrated Induction Module & BLDC motor system Solutions

We develop custom control systems for 4-zone induction hobs integrated with built-in downdraft extractors, merging high-efficiency induction heating and intelligent extraction control on a unified platform. With ultra-low standby consumption and strong ERP performance, the solution fully complies with EU energy regulations, targeting premium built-in kitchen appliance brands.
System Architecture:

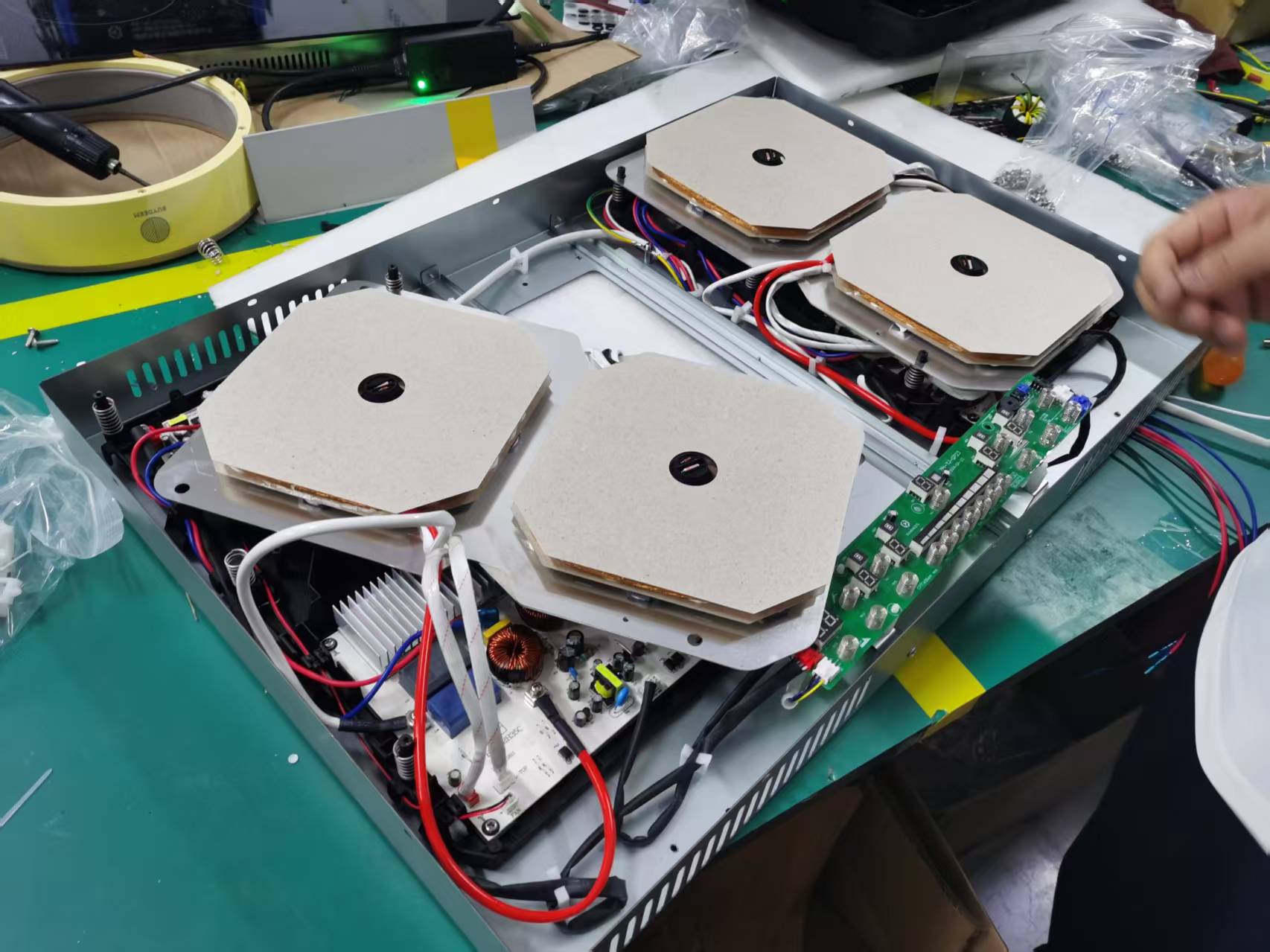

  • Induction Module:​ Four independently controlled induction zones with power distribution and load balancing. Per-zone output configurable, total power up to 7.4kw
  • BLDC System:​ Integrated within the hob body to capture fumes with high suction up to 600-700m3/h.
  • Unified Control Platform:​ Shared main HMI between induction and BLDC systems, enabling hob-hood linkage, bridge function, delayed shutdown, and safety interlocks.
Energy Performance:
  • Standby Power < 0.3W:​ Total system standby consumption (hob + hood), strengthening energy rating competitiveness.
  • ERP ≤ 185:​ Compliant with EU standard.
Linkage Control Features:
  • Power-to-Airflow Mapping: Higher heating power automatically increases extraction speed
  • Delayed Shutdown: Extractor continues running for a preset duration after cooking ends
  • Safety Interlock: Overheat/spill detection triggers extractor boost and hob power reduction or cut-off
Customization Capabilities:
  • Touch slider / rotary knob / TFT color display interfaces
  • Optional WiFi / Bluetooth connectivity
