Microwave Oven Automatic Production System

INQUIRY
Description

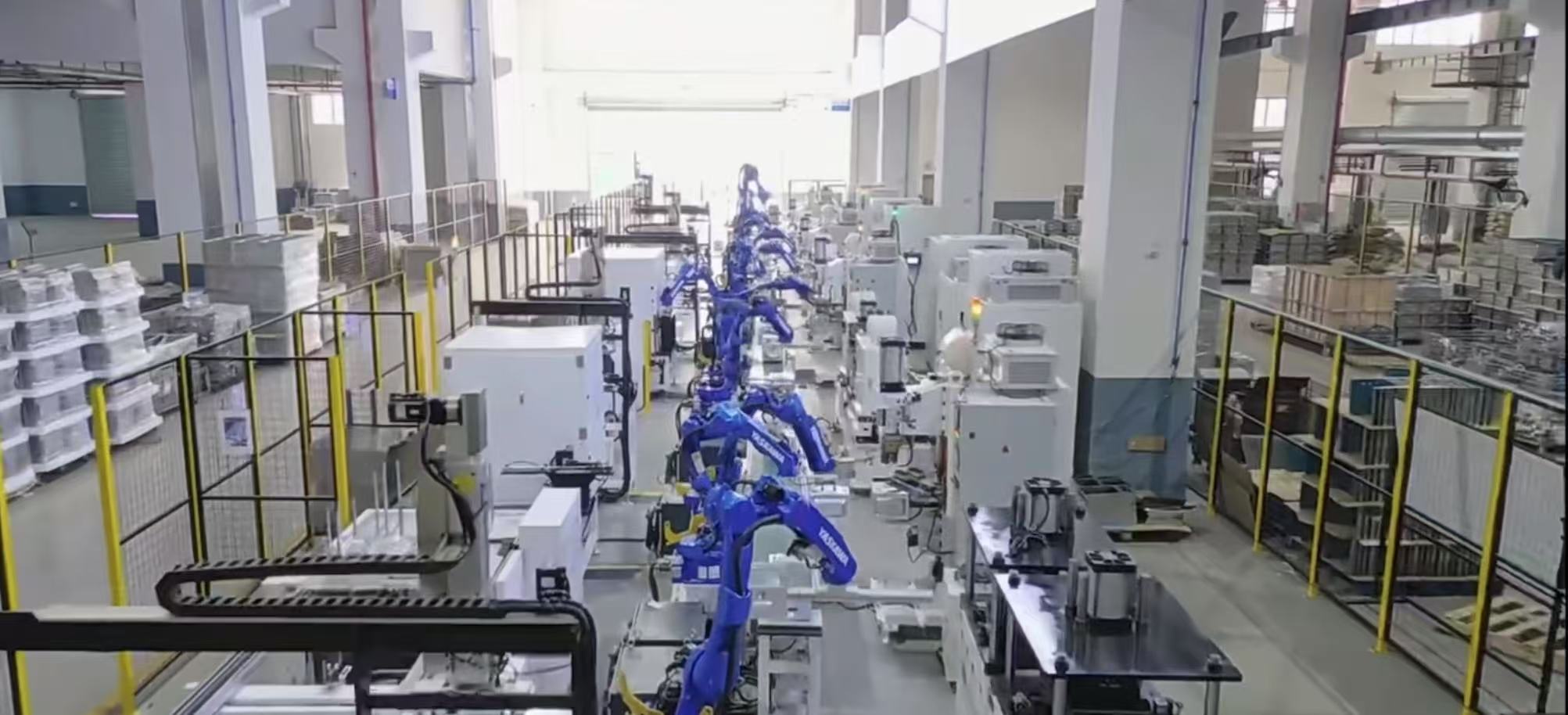

Microwave Oven Cavity Automatic Production System Solution
Bending · Stamping · Welding · Palletizing

Built on our own proven in-house cavity automation system, we deliver custom turnkey solutions for the complete automated forming of microwave oven cavities—from flat sheet metal to finished, weld-sealed cavities. Covering U-shell forming, door-frame bending, seam/spot/laser welding, and robotic palletizing, our lines support Solo, Grill, Convection, and combi cavity architectures.

Line Layout Options:
  • In-line series connection:​ Stamping → bending → welding → palletizing, belt/roller transfer. Ideal for high-volume single model.
  • L-shape / U-shape compact:​ Smaller footprint, suited for medium volume or mixed models.
Automation Highlights:
  • Automatic loading (destacking / coil decoiling & leveling)
  • Inter-station auto transfer (belt / roller / robot handling)
  • In-line dimensional inspection (laser displacement / vision positioning)
  • Quick die change / SMED
  • Central PLC + HMI touchscreen + remote monitoring interface
Tooling & Dies:
  • Progressive stamping dies, drawing dies, bending dies
  • Welding fixtures (ensuring corner gap ≤0.05mm)
  • Palletizing trays / spacer fixtures
Technical Support & Deliverables:
  • Cavity DFM (Design for Manufacturability) review
  • Line layout, takt-time calculation, capacity simulation
  • Installation, commissioning, trial run, yield ramp-up
  • Die and fixture design & delivery
  • Operator training: machine operation, die change, weld parameters, maintenance
