Automatic Powder Coating System

INQUIRY
Description
Custom Automatic Powder Coating System Solutions
Built on years of operating our own in-house automatic powder coating system, we provide end-to-end planning, equipment configuration, installation, and process know-how transfer for complete powder coating systems. Our solutions serve home appliance housings (microwave ovens, ovens, cooktop panels), sheet-metal fabrications, and hardware components.

Full Process Coverage:
  • Pre-treatment:​ Degreasing → rinsing → phosphating/iron-phosphate conversion coating → DI water rinse → dehydration drying. Spray or dip systems available. Compatible with CRS, galvanized steel, and aluminum.
  • Electrostatic Powder Coating:​ Automatic electrostatic guns (internal/external high-voltage), reciprocators/robot spraying, manual touch-up stations. Multi-color quick-change systems supported.
  • Curing:​ Gas-fired or electric curing ovens with ±3℃ temperature uniformity. Curing profile typically 180–200℃ × 10–15 min, fully programmable.
  • Cooling & Off-loading:​ Forced-air or natural cooling, QC stations (film thickness, adhesion, color deviation), off-loading and packing.
Conveyor Types Available:

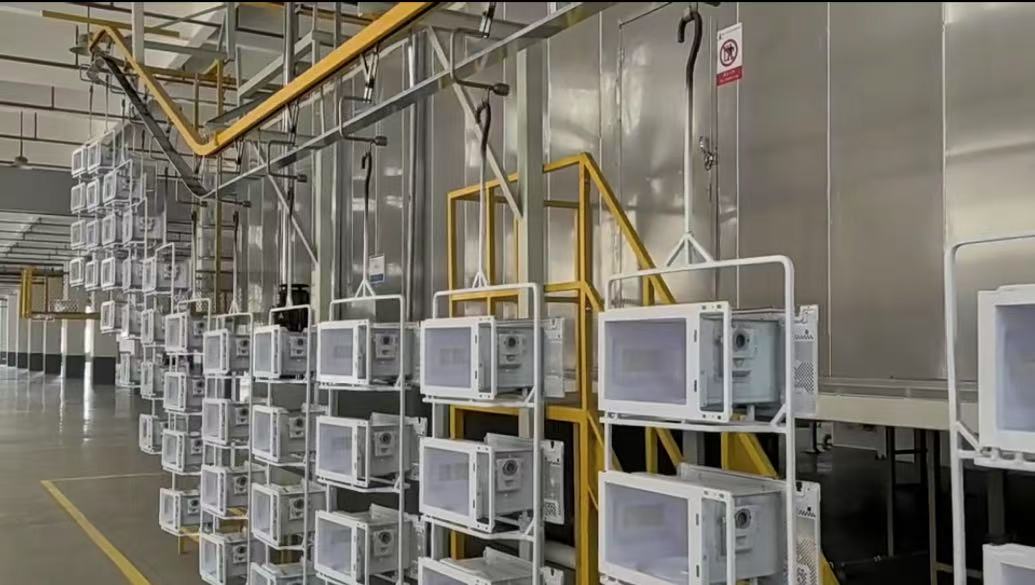

  • Overhead Conveyor:​ Ideal for irregular shapes and large parts; continuous operation, high throughput.
  • Floor Conveyor (Skid/Accumulating):​ Suitable for heavy or flat parts; controllable takt time.
  • Spray Booth Options:​ Cartridge-filter recovery (cost-effective), cyclone + cartridge two-stage recovery (frequent color change), stainless-steel booth (premium appearance parts).
Core Equipment Configuration:
  • Pre-treatment spray/dip tanks
  • Dehydration drying oven
  • Automatic reciprocators / robots
  • Electrostatic spray guns
  • Curing oven (gas hot-air circulation / electric)
  • Overhead conveyor system
  • Powder recovery and dust collection system
  • Electrical control cabinet (PLC auto temp control, VFD speed, fault alarm)
Technical Support & Deliverables:
  • Line layout drawings, capacity calculation, takt time design
  • Equipment installation, commissioning, trial production, yield ramp-up
  • Operator training: spray process, equipment maintenance, QC standards
