Description
Custom PCBA SMT & DIP Production System Solutions

Leveraging years of in-house electronics manufacturing expertise, we help clients plan, equip, and commission PCBA production lines—from fully automated SMT lines to manual DIP assembly lines. Whether you need a single demo line or a multi-line factory, we tailor solutions to your capacity targets, product mix, and budget, backed by full-process technical support and operator training.

Service Scope:

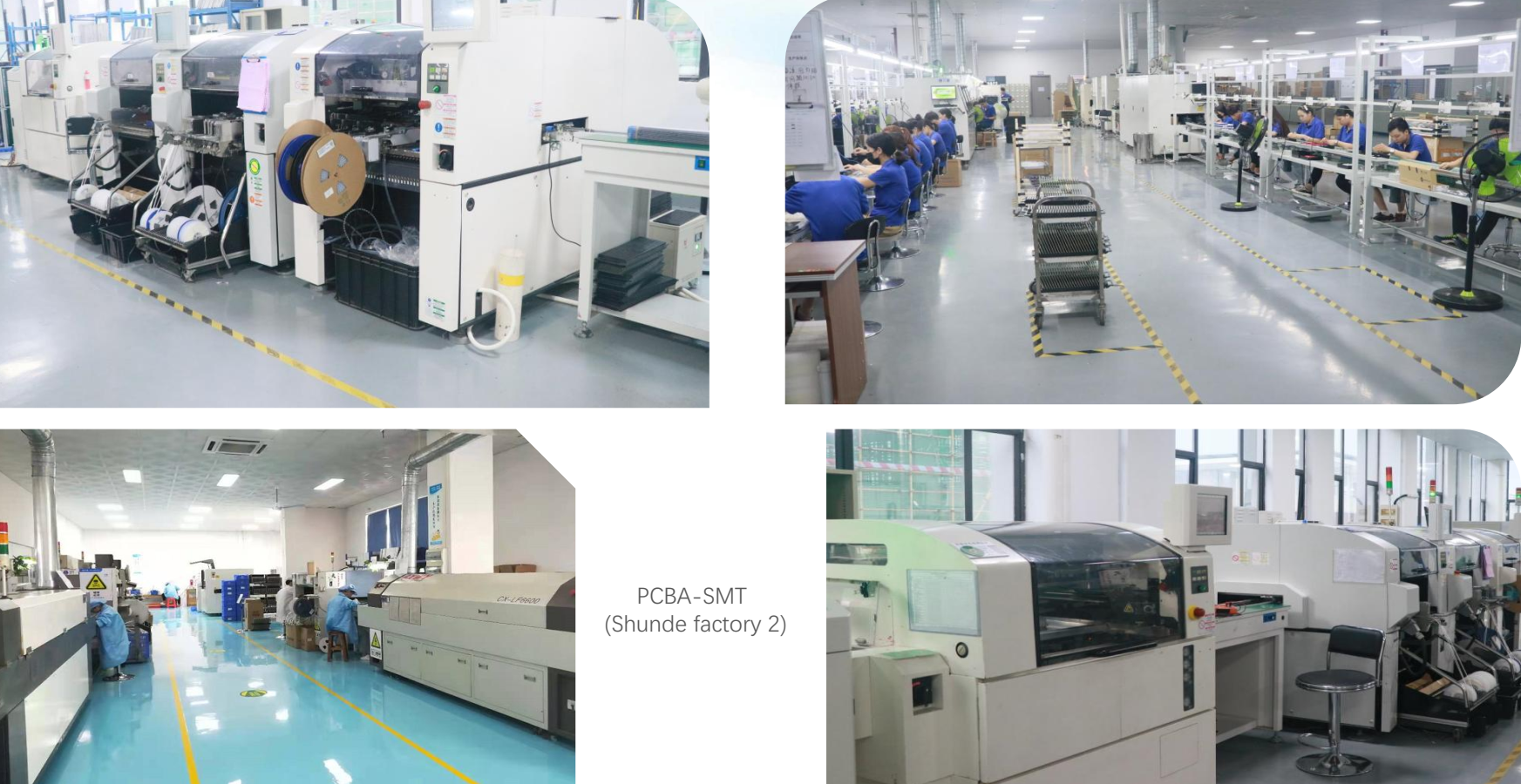

  • SMT Automated Line:​ Placement machines, solder paste printers, reflow ovens, AOI (Automated Optical Inspection), SPI (Solder Paste Inspection), loader/unloader—complete line planning and equipment configuration.
  • DIP Manual Insertion Line:​ Insertion stations, wave soldering / selective wave soldering, trimming, rework, ICT/FCT test station layout.
  • Custom Line Design:​ Line takt time, station count, and material flow engineered around your product type (appliance control boards, power boards, inverter drives, etc.).
  • Facility Planning:​ ESD protection systems, temperature/humidity control, feeder management areas, baking rooms, IQC/OQC inspection zones.

Technical Support & Deliverables:
  • Equipment selection guidance and supplier coordination
  • Line installation, commissioning, trial production support, and yield ramp-up
  • SMT process parameter setup (stencil design, reflow profile, solder paste selection)
  • Operator training: pick-and-place programming, AOI programming, thermal profiling, ESD compliance
